TruScan™ Live Mapping System

TruScan™ -- The World's Most Accurate Frame Measuring System

More and more customers and insurance companies are requiring the use of computerized measuring as part of the repair process. And Chief’s® TruScan™ is far and away the most sophisticated – yet simple to learn and operate – system available in the industry today. Fast and easy set-up with full-color, one-page reports on the exact condition of the vehicle’s frame before, during and after repairs have been made for indisputable evidence of damage severity and quality repairs.

Chief's TruScan™ is the computer measuring system the industry turns to most. And who can blame them? After all, TruScan's sophisticated laser technology no only identifies damage you can see -- but primary and secondary damage you can't see -- helping your techs develope more efficient repair plans eleminating comebacks and helping you find and get paid for hidden damage.
And TruScan's durable scanner and high-tech targets eleminate distortion and deliver pinpoint accuracy each time, every time. Its proprietary software helps techs identify incorrect pull set-ups BEFORE they are made to prevent additional damage and speed up the repair process.

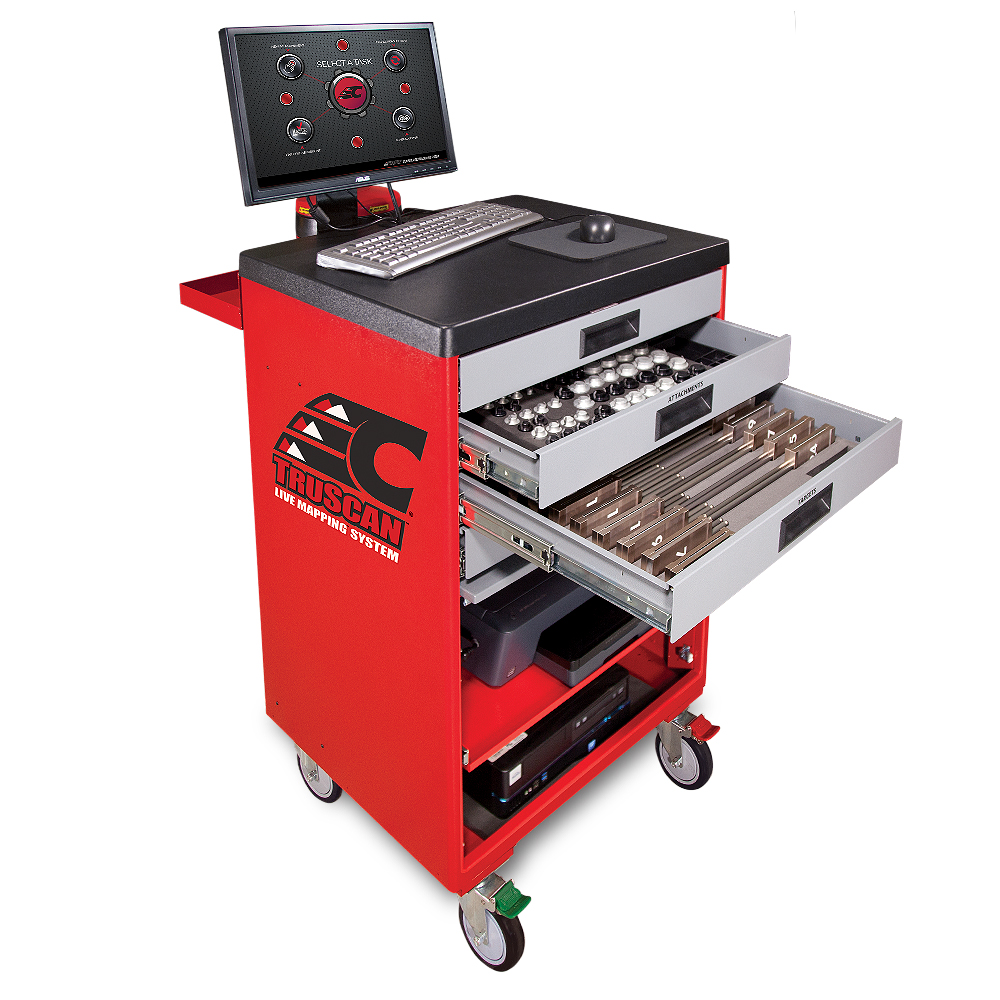

Steel Cabinet Workstation

Powder-coated baked finish with chemical-resistant ABS molded top.

Two (2) rotating and two (2) fixed casters for easy mobility.
Complete 110 or 220 volt system.


Windows 10 Professional Edition
Heavy-duty CPU with Extreme Graphics
500 gb hard drive
4 GB of memory

6-Channel high-output audio system
Integrated network capabilities
DVD Player
Keyboard and Mouse
LCD Color Monitor


Chief measuring software can be navigated quickly and easily
On-screen photos of attached and where they should be located
One-touch movements
X-measurements can be made with a click of the mouse
Comparative SAI and caster measurements
The system can be set-up to calculate for removed components
Three seperate and easy-to-read color reports to show measurements before, during, and after repairs are made.
Your company logo can be incorperated into the document design.
Includes interactive help and tutorial.


HP color printer

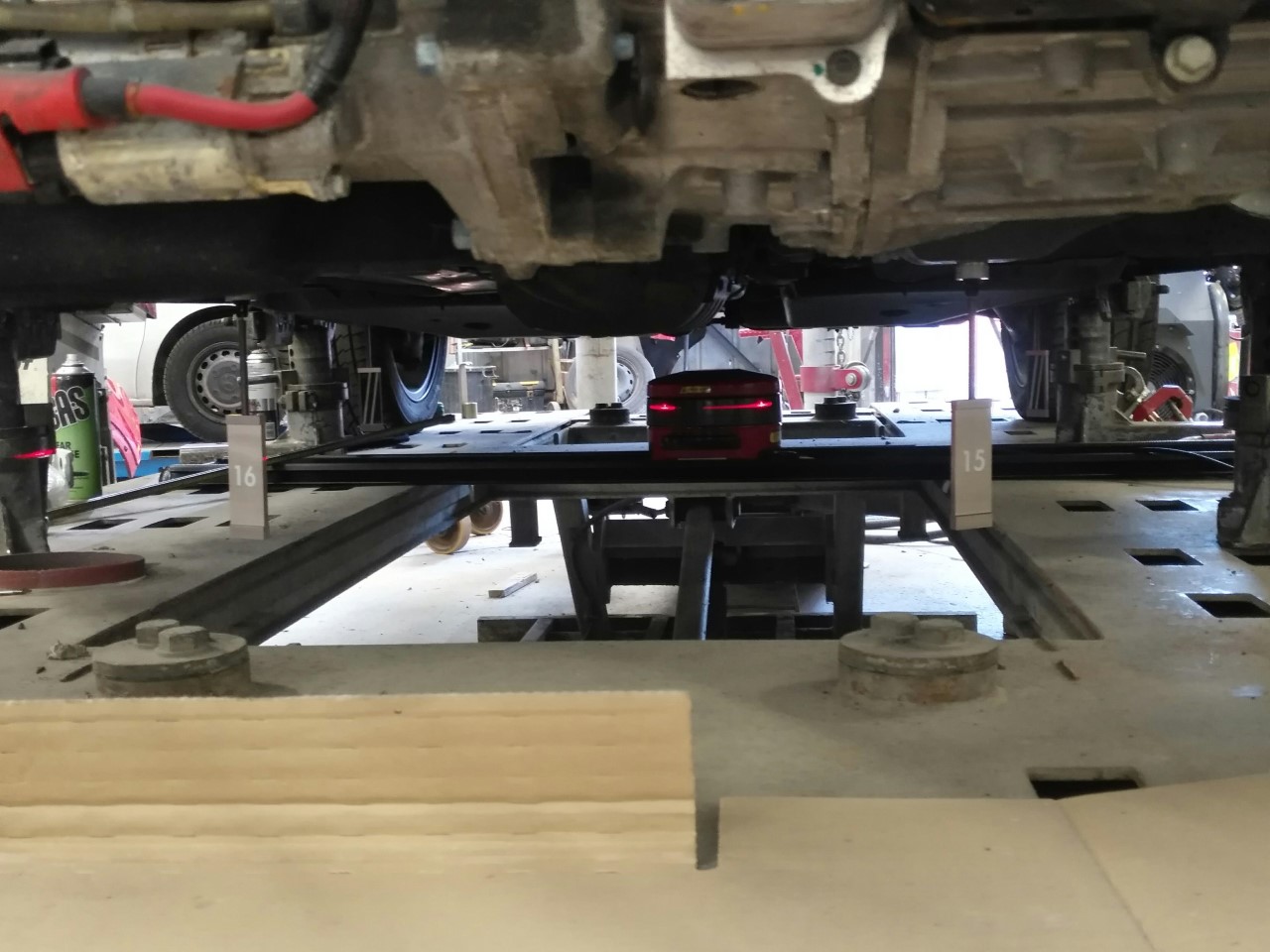

Body Scanner with Tray

Small 6"W X 6" X 23"L design helps prevent target blockage
2 lasers
2 rotating mirrors

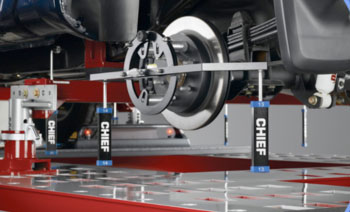

32 individual car-coded reflective targets for large scannable area

Bolt Attachments/Clips

Metal clip attachments ranging in size from 10mm to 35mm

Hole Attachments/Clips

58 alluminum snap-in attachments ranging in size from 10mm to 32mm.
Side hole clips ranging in size from 23mm to 35mm


Usermanual, parts manual, basic training manual, user manual(s) for computer, printer, and Microsoft Windows
Avaliable on CD

Component List

Optional Accessory


VIN Scanner/Decoder


Scanner Tripod/Quick Release


Upper Body Bar


Body Openings Tram


Rear Wheel Tracking Guage


Upper Body Extended Scale Assembly


Target Weight Assembly


Target Extension Package
